Installing the flexible disc for the front propeller shaft

NOTE: TECHNICAL INFORMATION
For all-wheel drive vehicles from the 5 Series and 7 Series, the aluminum flexible discs have been eliminated and replaced with elastic flexible discs made of rubber as of production date 09/2015.

Check centering (1) for damage and replace centering, if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
Check centering (arrow) for damage and replace centering if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Apply a thin coat of grease to the soft centering (1), if necessary.

CONSUMABLE - LUBRICATING GREASE DESCRIPTION

Lubricating grease	100 g,	83 19 0 447
Olistamoly 2 LN 584 LO	Tube	919

Hard centering must (2) not be greased.

Courtesy of BMW OF NORTH AMERICA, INC.
If applicable, position the flexible disc (rubber) (1) including the guides (2) in the recesses of the three-hole flange (3).

Courtesy of BMW OF NORTH AMERICA, INC.

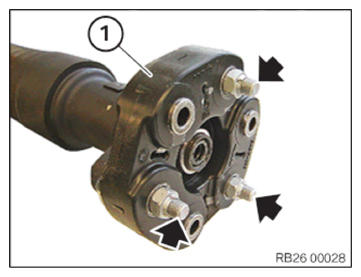

Install the flexible disc (1) on the prop shaft.
Replace screws and self-locking nuts (arrows).
Parts: Self-locking nuts and bolts
Insert screws and tighten.

TIGHTENING TORQUES SPECIFICATION

Front flexible disc to prop shaft
M12 Replace screws. Jointing torque and angle rotation must be adhered to. Tightening via screw.	Joining torque	55 Nm
	Angle of rotation	90°

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Install the PROP SHAFT on the transmission.
Install transmission CROSS MEMBER .
Install the UNDERBODY PLANKING of the transmission on the side.
Install rear UNDERBODY PROTECTION .
