Inline plugs, 4-, 10-pin, System Elo (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)

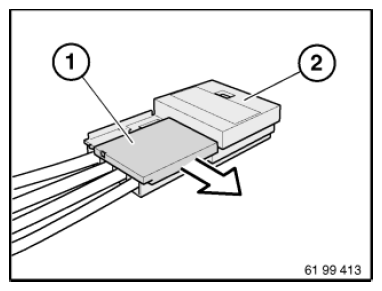

Detach fastener (1) from contact carrier (2).

Courtesy of BMW OF NORTH AMERICA, INC.

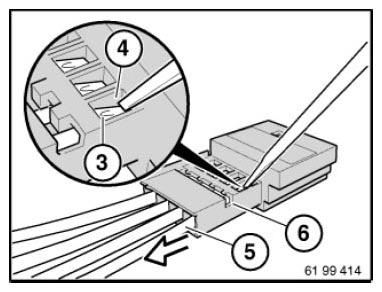

Hold down retaining hook (3) of defective contact and pull cable and contact up to secondary lock (6).

Courtesy of BMW OF NORTH AMERICA, INC.

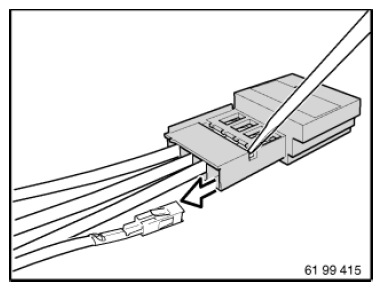

Hold down retaining hook once again in secondary lock and pull cable and contact completely out of contact carrier.

Courtesy of BMW OF NORTH AMERICA, INC.
