Removing the rear power distribution box
Preliminary works
- Deactivate the 48 v ELECTRICAL SYSTEM .
- Disconnect all battery EARTH LEADS .
- Remove the loading EDGE TRIM .
- Remove right luggage compartment wheel arch TRIM PANEL .
NOTE:
TECHNICAL INFORMATION
Fuses can come loose when unlocking the plug connections in the power distribution box. Use suitable means to prevent the fuses from falling out.
Fuses can come loose when unlocking the plug connections in the power distribution box. Use suitable means to prevent the fuses from falling out.
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

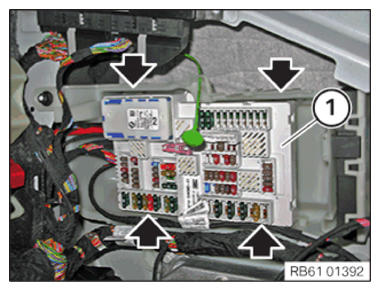

- Unclip the power distribution box (1) (arrows).
- Remove the power distribution box (1).

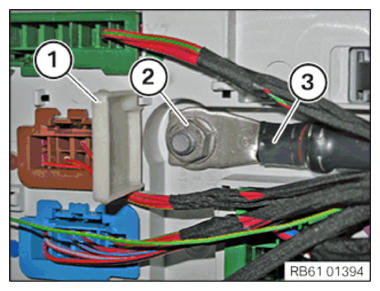

- Open the cover (1).
- Loosen nut (2).
- Remove positive battery cable (3).

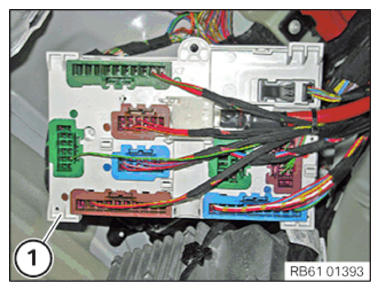

- Unlock and disconnect all connectors on the power distribution box (1).
- If applicable, release the cable strap from the positive battery cable.
