Install flap in right luggage compartment trim panel

Install flap in right luggage compartment trim panel

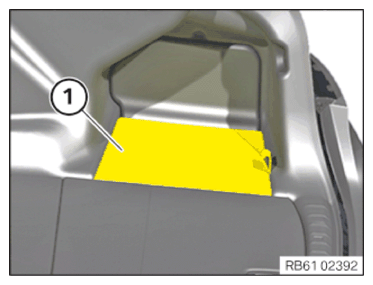

• Install the (1) insert shell.

  Courtesy of BMW OF NORTH AMERICA, INC.

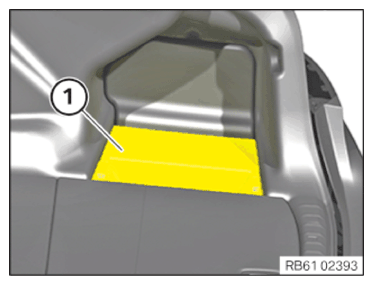

• Install the cover (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

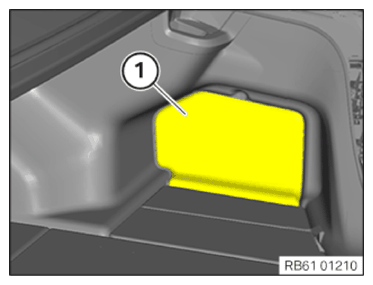

• Insert and close the flap (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Install right luggage compartment trim panel

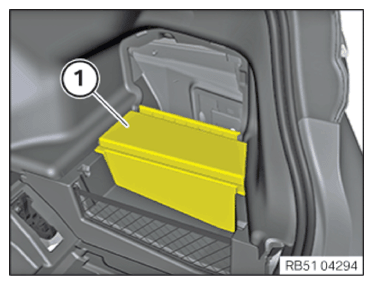

• Install the luggage compartment trim panel (1) from the top.

  Courtesy of BMW OF NORTH AMERICA, INC.

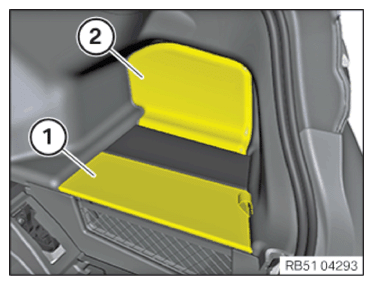

• Install the cover (1) from the top.
• Install the cover (2).

  Courtesy of BMW OF NORTH AMERICA, INC.
