General Electrical System - Repair (G30) (2 Of 3)
>>
61 27 High-Voltage Battery Unit, Individual Components
>>
61 27 650 Set up high-voltage battery unit for replacement (After vehicle diagnosis) (high voltage battery unit removed) (530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022)
>>
Installing the holders for the high-voltage cables
Installing the holders for the high-voltage cables

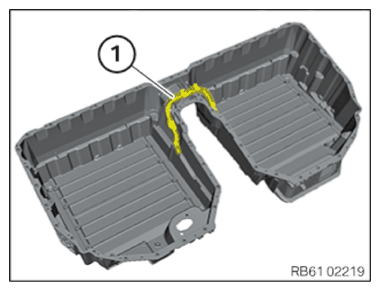

Clip in the holder for the high-voltage cables (1).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
