Installing the holder

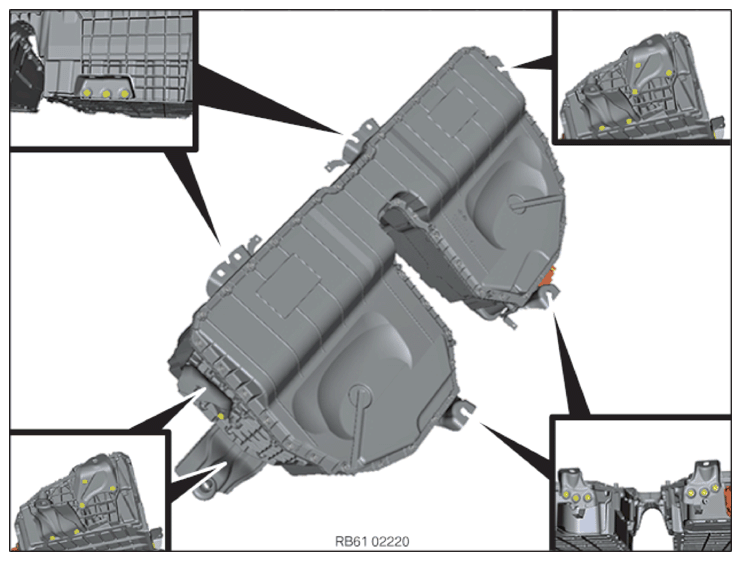

Holder on housing

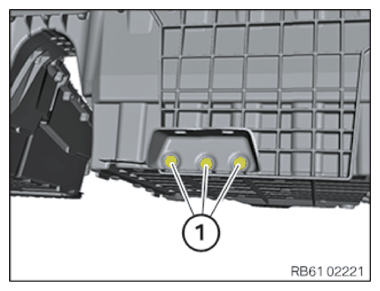

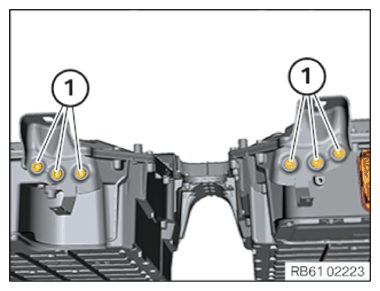

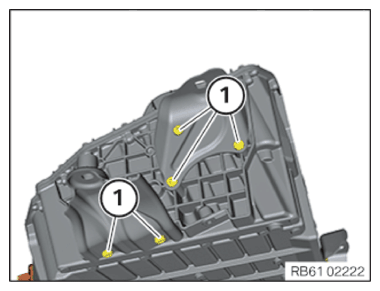

- Tighten the screws (1).TIGHTENING TORQUES SPECIFICATION
Holder to lower housing section M8x18 replace screw. Tightening torque 25 Nm - Tighten the screws (1).TIGHTENING TORQUES SPECIFICATION
Holder to lower housing section M8x18 replace screw. Tightening torque 25 Nm - Tighten the screws (1).TIGHTENING TORQUES SPECIFICATION
Holder to lower housing section M8x18 replace screw. Tightening torque 25 Nm Repair solution in the case of a faulty thread (M8)
NOTE:
TECHNICAL INFORMATION
If a bolt is not tightened to the specified torque or the thread is damaged, replace this thread.
A minimum of two threads must be undamaged. If all threads are damaged, replace the housing.
If a bolt is not tightened to the specified torque or the thread is damaged, replace this thread.
A minimum of two threads must be undamaged. If all threads are damaged, replace the housing.
- Drill out the damaged thread to 9.4 mm.
Exclusively drill out the threads when the upper housing section has been positioned to prevent shavings from penetrating the inside of the housing.
- Remove shavings using a vacuum cleaner.
- Screw in the thin-wall thread insert M8 using the special tool 2 405 075 until slightly recessed by approximately 0.2 mm.
- Secure the upper housing section with the bolt.CONSUMABLE - THIN-WALL THREAD DESCRIPTION
Thin-wall threaded insert M8 41002361595
Follow-up work
- Perform EOS TEST
