61 27 High-Voltage Battery Unit, Individual Components
>>
61 27 910 Repair of temperature sensor (negative temperature coefficient) on a cell module (cell module removed) (530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022)
>>
Installing the cell module lid
Installing the cell module lid

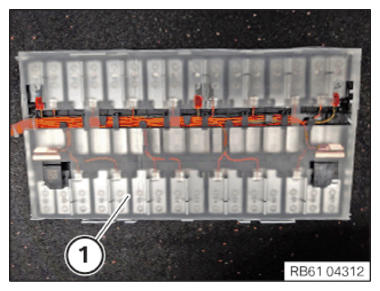

Remove the cover (1).
Courtesy of BMW OF NORTH AMERICA, INC.

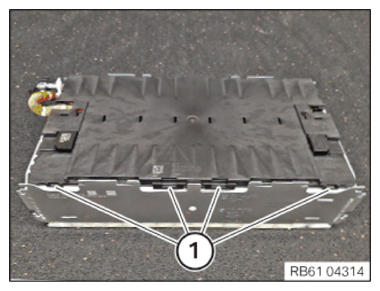

Place the lid (1) correctly and clip it in.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
