Installing the coil spring cassette

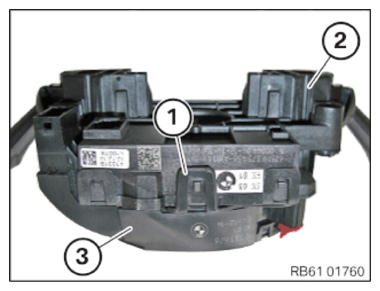

• Clip on coil spring cassette (3) on the SZL (steering column switch cluster) (2).
• Check the central latch mechanism (1) on the SZL (steering column switch cluster) (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

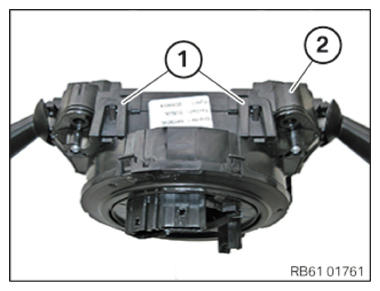

• Check the latch mechanisms (1) on the SZL (steering column switch cluster) (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Install the steering column SWITCH CLUSTER  (SZL).
• Install steering lower section column SHROUD .
• Fit steering upper section column SHROUD .
• Install the STEERING WHEEL .
• Install the steering wheel or sports steering wheel AIRBAG UNIT .
• Connect all battery EARTH LEADS .
• Activate the 48 v ELECTRICAL SYSTEM .
