Installing the connecting socket of the USB audio interface in the front storage compartment

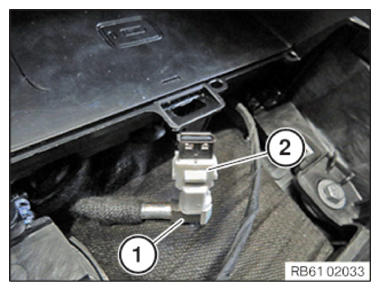

• Connect the connecting socket (2) to the connector (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

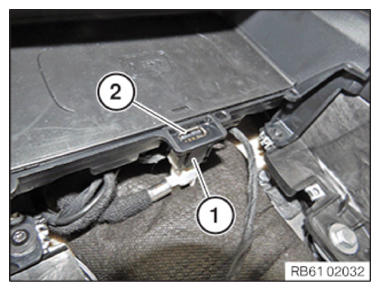

• Insert the connecting socket (2) from the bottom.

  The connecting socket (2) must engage correctly in the latch mechanism (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Install the CUP HOLDER .
• Secure the center console trim to the CENTER CONSOLE
• Install the center ARMREST .
• Install the center armrest STORAGE COMPARTMENT .
