Remove the brake light switch

Preliminary works

• Remove the pedal mechanism TRIM PANEL .

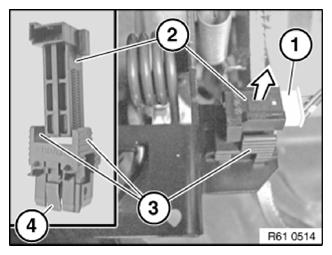

• Disconnect the connector (1).
• Operate and hold brake pedal.
• Pull the brake light switch (2) from the holder for the brake light switch (3) in the direction of the arrow.
• Press together the latch mechanisms (4) and unclip the holder for the brake light switch (3) from the brake pedal.
