General Electrical System - Repair (G30) (3 Of 3)
>>
61 31 Switch, Sensor
>>
61 31 584 Removing and installing/replacing the switch for the automatic operation of tailgate (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Remove the tailgate lift switch
Remove the tailgate lift switch
Prerequisite
Tailgate is open.

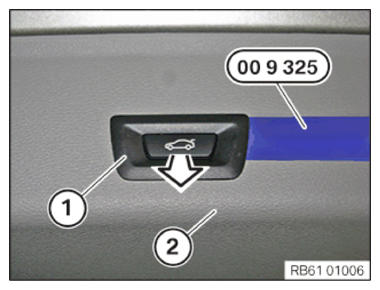

Lever the switch for the tailgate lift (1) out of the
tailgate trim panel (2) with the special tool
0 496 571 (00 9 327).
Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and disconnect the connector (1) on the switch (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
