Remove fanfare, right
NOTE:
TECHNICAL INFORMATION
Replace the fanfare only complete with the holder.
- Equipment specification with radiator:

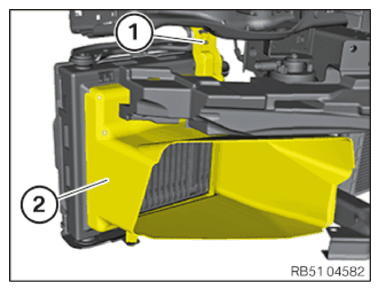

Loosen screw (1).
Feed out air duct (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

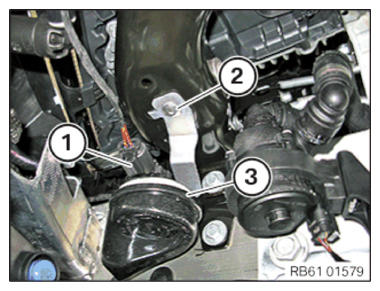

- Unlock and disconnect connector (1).
- Drill out a blind rivet (2) with a suitable drill (e.g. 8 mm).
- Remove the fanfare with the holder (3).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
