Installing the 12 V power socket in the storage compartment in the center console

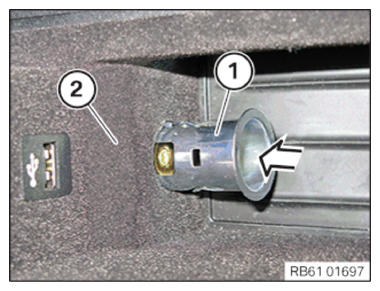

• Connect and lock the associated connector with the 12 V power socket (1).
• Position the 12 V power socket (1) in the direction of arrow in the storage compartment in the center console (2) and engage it.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Install the center armrest STORAGE COMPARTMENT .
