Install Ethernet switch

• Position the Ethernet switch (3).
• Tighten nuts (2).
  TIGHTENING TORQUES SPECIFICATION



  Ethernet switch to body
  Nut	Tightening torque	2.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the connector (1) with the Ethernet switch (3) and lock it.

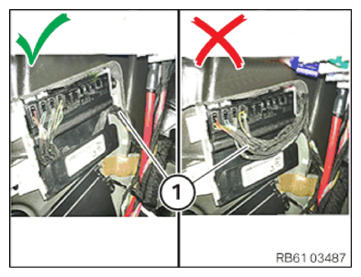

• Place the wiring harness (1) correctly as shown.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Install the left a-pillar footwell side TRIM PANEL .
• Install the front door sill COVER STRIP .
• Install the pedal mechanism TRIM PANEL .
