61 35 Control Units, Modules
>>
61 35 582 Replacing control unit/module for left or right seat adjustment (after vehicle diagnosis) (flat rate specification without programing/encoding) (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Remove the front seat module (SMFA)
Remove the front seat module (SMFA)
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
Remove
FRONT SEAT
.
Unlock the retaining lugs (1).
Pull the SMFA control unit (2) forward.
Courtesy of BMW OF NORTH AMERICA, INC.

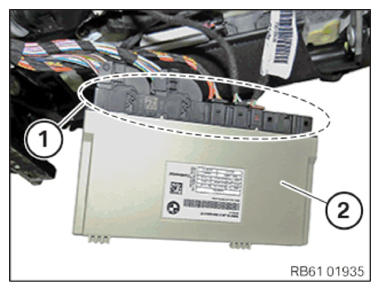

Unlock and disconnect connector (1).
Remove the SMFA control unit (2) from the holder.
Courtesy of BMW OF NORTH AMERICA, INC.
