Removing the voltage transformer

Preliminary works

• Deactivate the 48 v ELECTRICAL SYSTEM .
• Disconnect all battery EARTH LEADS .
• Remove the loading EDGE TRIM .
• Partially remove the right luggage compartment wheel arch TRIM PANEL .

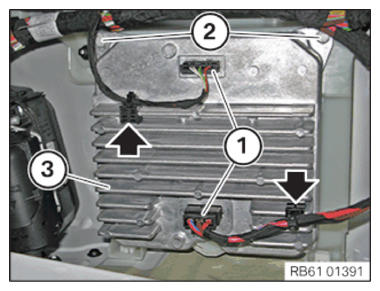

• Unlock and disconnect connector (1)  .
• Unclip the cable clip.
• Loosen screws (2)  .
• Remove the voltage transformer (3)  .
