61 61 Windshield Wiper
>>
61 61 021 Replacing the wiper blade on the left or right (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Install the wiper blade
Install the wiper blade
NOTE:
Description is for left component only. Procedure on the right side is identical.

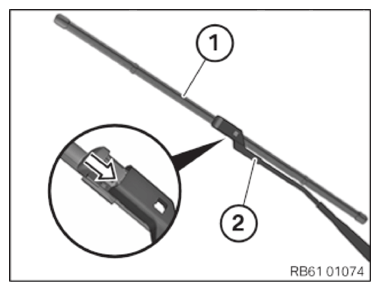

Clip in the wiper blade (1) in the direction of the arrow on the wiper arm (2).
Fold in the wiper arm (2) and check the lock.
Switch on driving readiness or hold the wash/wipe switch down again.
Wipers move back to wiper park position and are again operational.
Courtesy of BMW OF NORTH AMERICA, INC.
