Install left and right wiper arm

NOTE: TECHNICAL INFORMATION
The wiper system must be in zero position.
After installing the cowl panel cover and before fitting the wiper arm:
Activate the wiper system once to ensure that it has the correct installation position.

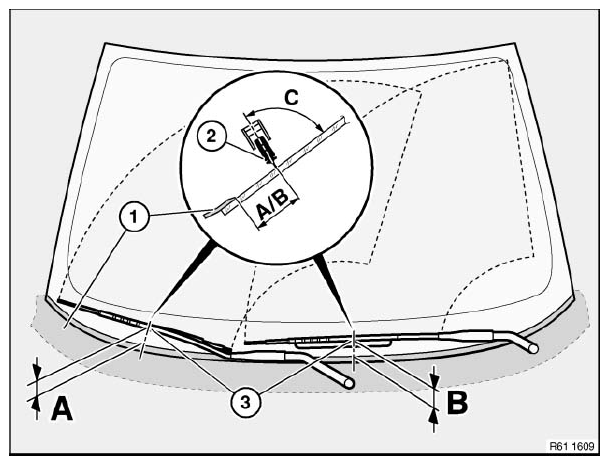

Connect the wiper arms (3).

Correctly position the wiper arm (2) in relation to the window edge (1).

TECHNICAL DATA - DISTANCE SPECIFICATION

Distance from window pane edge to wiper blade
Wiper arm right (A)	65 mm
Wiper arm left (B)	58 mm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Description is for left component only.
Procedure on the right side is identical.

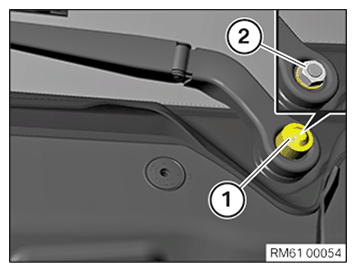

Tighten nut (2).

TIGHTENING TORQUES SPECIFICATION

Windscreen wiper arm
Combination hexagon nut	Tightening torque	35 Nm

Connect the protective cap (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

Install the WIPER BLADE .
