Installing the high-pressure nozzle of the headlight cleaning system

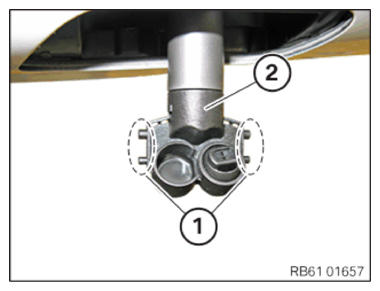

- Check the retaining lugs (1) on the high-pressure nozzle (2).
Retaining lugs must not be damaged or missing.

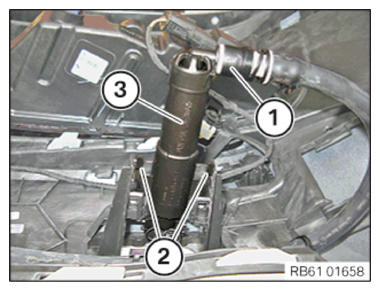

- Connect high pressure line (1).
- Install high-pressure nozzle (3) to the front.
- Check high-pressure nozzle (3) for correct latch mechanism (2).

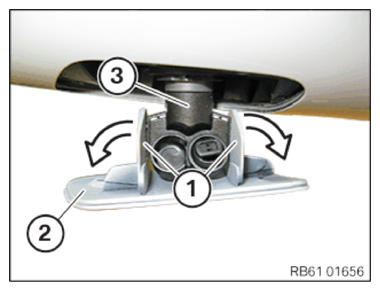

- Carefully bend up guide (1) of the cover (2) in direction of arrow and clip into the high-pressure nozzle (3).
- Allow the high-pressure nozzle (3) of headlight cleaning system to slide back slowly.
