Removing ignition coil of cylinder bank 2

Prerequisite

Ignition is switched off.

NOTE: RISK OF DAMAGE
Damage to the ignition coil.
The silicone hose of the ignition coil must not be contaminated by fuel as this can lead to failure of the ignition coil.

When working on the fuel system, cover the ignition coils with suitable materials and remove where required.
Do not oil or grease the silicone tube of the spark plug socket. Do not use any protection or maintenance products (e.g. silicone spray, rubber care products, rust remover, etc.).

→ Removing the cover panel of the left DME control unit

Remove the cover (1) and pull it up.

Courtesy of BMW OF NORTH AMERICA, INC.

→ Remove top clean air pipe

WARNING: Hot surfaces.
Risk of burning!

Perform all work only on components that have cooled down.

Loosen clamps (1).
Feed out top (2) clean air pipe and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

→ Removing the control unit bracket for cylinders 5 to 8

NOTE: RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.

Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
Read and comply with user information on using the associated special tool 12 7 060.
Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
For additional information see: NOTES ON ESD (ELECTROSTATIC DISCHARGE) PROTECTION .

NOTE: TECHNICAL INFORMATION
Follow instructions for removing and installing control units.
For additional information see: 1200... INSTRUCTIONS FOR REMOVAL AND REPLACEMENT OF CONTROL UNITS .
TECHNICAL INFORMATION
Disconnecting control units may cause fault code entries and functional limitations. Fault code entries must be read out and deleted if necessary.

Unlock and disconnect all plug connections (1).
Disconnect all clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1).
Guide out and remove control unit bracket (2) with the DME control unit upwards out of holder (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Use commercially available disconnection tools to pinch off the coolant lines.

Courtesy of BMW OF NORTH AMERICA, INC.

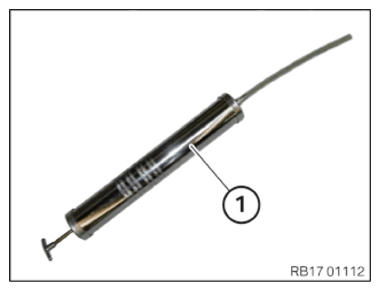

Use commercially available syringe (1) or suitable tool to draw off coolant expansion tank.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen sealing cap (1).
Draw off coolant using standard pump from the coolant expansion tank (2) and dispose of it.
Disconnect the coolant hose (3) from the coolant expansion tank (2).
Unlock and loosen holder (4).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Only flexible hose pipes may be disconnected.
Disconnect the coolant hoses (1) with standard disconnection tools (arrows).
Unlock and release coolant line (1).
Catch and dispose of escaping coolant.

Unlock plug connection (2) and disconnect.
Disconnect clamp (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Equipment specification with gasoline particulate filter:
Feed the cable (1) out of the brackets toward the front.

Remove the rear bonnet seal (2) from the guide toward the inside.

Courtesy of BMW OF NORTH AMERICA, INC.
Equipment specification with gasoline particulate filter:
Loosen screws (1).
Carefully slide the coolant expansion tank (2) upwards and to the front.

Courtesy of BMW OF NORTH AMERICA, INC.
Equipment specification with gasoline particulate filter:
Release the screws (1) several thread starts.

Lift the holder of the GPF (2) upward and out of the guide.
Thread out coolant expansion tank (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).
Thread out coolant expansion tank (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Injectors contaminated with coolant.
Damage to and failure of injectors that were coated with coolant for an extended period.

Covering injectors with suitable auxiliary materials before testing or topping up the coolant is mandatory.
Covering injectors with suitable auxiliary materials before working on the cooling system in the area of the injectors is mandatory.
If necessary, draw off all of the coolant from the coolant expansion tank.
Always clean injectors or injector shafts contaminated with coolant (e.g. with compressed air).

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Swirling dirt particles caused by compressed air.
Injury hazard!

Collect dirt particles, e.g. when blowing out, use cloth to do so.
Wear safety goggles.

CAUTION: Materials harmful to health.
Contact with fluids harmful to health!

Note and follow safety instructions on containers.
Conduct all work in appropriate personal protective equipment only.

Check the injector shafts for coolant residues (1).
If there are coolant residues (1) in the injector shaft: Clean the injector shafts with an air gun (2).
Loosen clamps (1).
Thread cable (2) out of holders (arrows) and place to one side.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock the connectors (arrows) and disconnect.
Loosen nut (1).
Loosen screw (2).

Remove the cable clip (3) and put to one side.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1).
Slowly pull the ignition coil (2) up and take out without jerking it.

Pulling out the ignition coil with jerks may cause silicone hose to tear.

Courtesy of BMW OF NORTH AMERICA, INC.
