Removing the crankshaft sensor
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
Preliminary work
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING REAR UNDERBODY PROTECTION .
- Refer to REMOVING THE CENTER UNDERBODY PROTECTION .
NOTE:
RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.
Electrostatic discharge.
Damage to or destruction of electrical components.
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: NOTES ON ESD (ELECTROSTATIC DISCHARGE) PROTECTION .
- Loosen screw (1).
- Loosen screw (1).
- Guide out and remove the manifold bracket (2).
- With automatic transmission:
Loosen screw (1).
Guide out and remove holder (2).
Loosen screw (3).
- With automatic transmission:
Loosen clamp (1).
Feed out holder (2) from the guide (3).
Feed out and remove bracket (2) from the transmission oil lines (4).

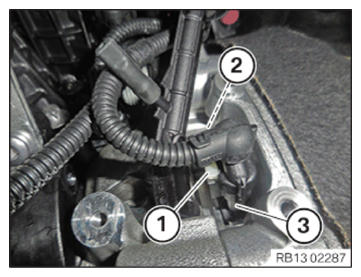

- Unlock plug connection (1) and disconnect.
- Loosen screw (2).
- Guide out and remove crankshaft sensor (3).
