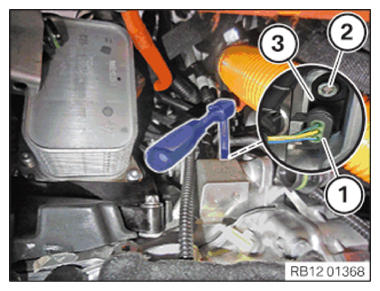

Installing the crankshaft sensor

• Feed in and install the crankshaft sensor (3).
• Tighten the bolt (2) with conventional tools.

Courtesy of BMW OF NORTH AMERICA, INC.

• Connect and lock the connector (1).
• Make sure the connector (1) engages audibly.

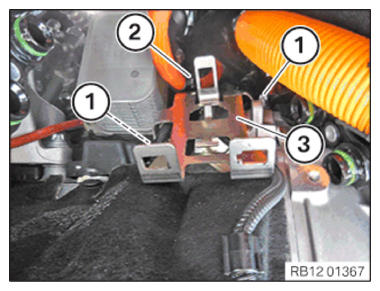

• Insert and install the holder (3).
• Secure clamps (2).
• Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE THERMOSTAT ON THE TRANSMISSION OIL LINES .
• Refer to CONNECTING NEGATIVE BATTERY CABLE .
• Refer to CHECKING/TOPPING UP THE OIL LEVEL IN THE AUTOMATIC TRANSMISSION .
• Refer to INSTALLING REAR UNDERBODY PROTECTION .
