Removing the crankshaft sensor

Preliminary work

• Refer to REMOVING REAR UNDERBODY PROTECTION .

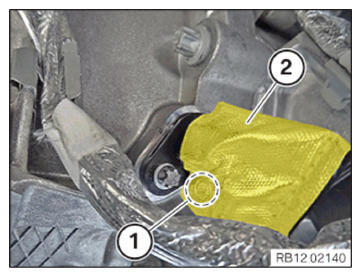

• Unlock the thermal protection (2) at the push-button (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

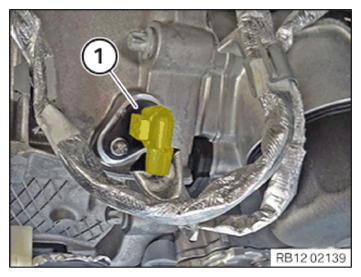

• Unlock plug connection (1) and disconnect.

  Courtesy of BMW OF NORTH AMERICA, INC.

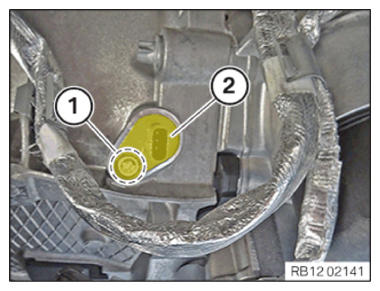

• Loosen screw (1).
• Remove the crankshaft sensor (2).

Courtesy of BMW OF NORTH AMERICA, INC.
