Remove the intake camshaft sensor of cylinder bank 2

Preliminary work

• Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
• Refer to REMOVING THE COVER PANEL OF THE LEFT DME CONTROL UNIT .
• Refer to REMOVING TOP CLEAN AIR PIPE .
• Refer to REMOVING THE CONTROL UNIT BRACKET FOR CYLINDERS 5 TO 8 .

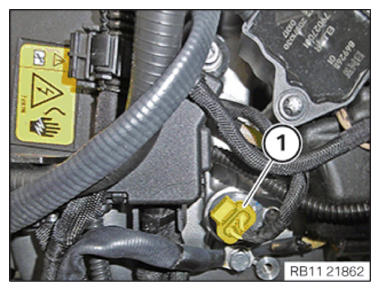

• Unlock plug connection (1) and disconnect.

  Courtesy of BMW OF NORTH AMERICA, INC.

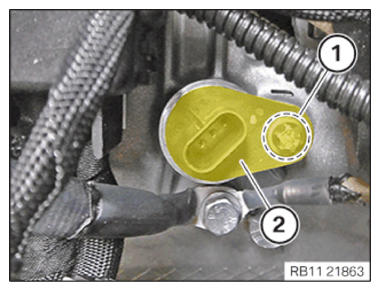

• Loosen screw (1).
• Removing intake camshaft sensor of cylinder bank 1 (2)

Courtesy of BMW OF NORTH AMERICA, INC.
