Install the camshaft position sensor of the exhaust camshaft

• Replace sealing ring (1).

  Parts: Sealing ring

  Courtesy of BMW OF NORTH AMERICA, INC.

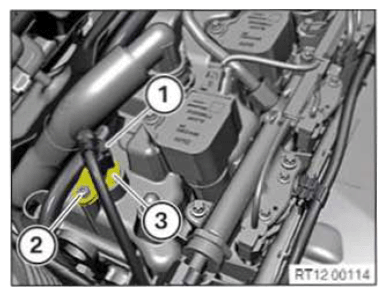

• Guide the camshaft position sensor of the exhaust camshaft (3) in and install.
• Tighten down screw (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUES SPECIFICATION



  Camshaft position sensor to cylinder head cover
  TS5x20	Tightening torque	4 Nm

• Connect connectors (1) and lock.

  The connector (1) must engage audibly.

Follow-up work

• Refer to INSTALLING ACOUSTIC COVER .
