Removing camshaft position sensor of the right intake camshaft
Preliminary work
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING INTAKE SILENCER HOUSING .
- Refer to REMOVING FRONT CROSS CONNECTION .
- Refer to REMOVING THE REAR TOP CROSS CONNECTION .
- Refer to REMOVING THE RIGHT UNFILTERED-AIR DUCT .

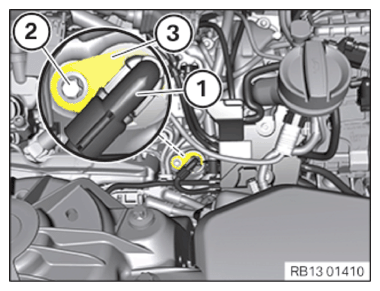

- Unlock connector (1) and detach.
- Loosen screw (2).
- Remove the camshaft position sensor (3) of the left intake camshaft.
