Remove the DME control unit of cylinders 1 to 4

Preliminary work

• Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
• Refer to REMOVING THE COVER OF THE RIGHT DME CONTROL UNIT .

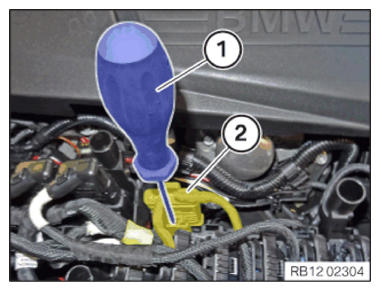

• Unlock and disconnect the connector (2) with a suitable screwdriver (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

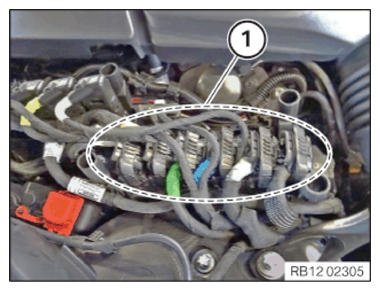

• Unlock and disconnect the plug connections in area (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

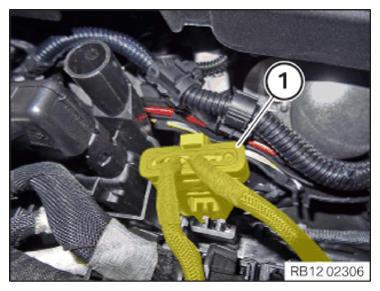

• Unlock plug connection (1) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

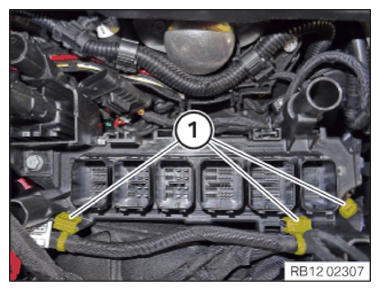

• Release the wiring harness mountings (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

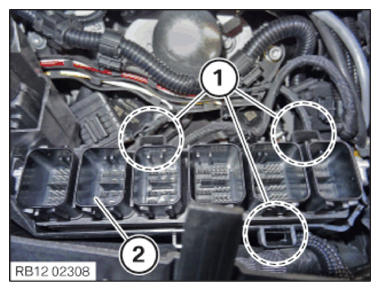

• Unlock the adapter plate at the detents (1) and remove in an upward direction.
• Remove the Digital Motor Electronics control unit (2) towards the top.

  Courtesy of BMW OF NORTH AMERICA, INC.
