Remove cover housing
CAUTION:
Materials harmful to health.
Contact with fluids harmful to health!
Contact with fluids harmful to health!
- Note and follow the manufactures safety information on containers.
- Conduct all work in appropriate personal protective equipment only.
Preliminary works
- Remove the luggage compartment floor TRIM PANEL .
- Remove the loading EDGE TRIM .
- Partially remove the right luggage compartment wheel arch trim PANEL .
- Remove the fuel filler FLAP .
- Remove the rear right WHEEL .
- Remove right rear wheel arch COVER .
- Partially remove the FUEL FILLER PIPE .
NOTE:
TECHNICAL INFORMATION
Use only lint-free cloths for cleaning the SCR system: WAYPALL cleaning cloths L20 - see the applicable BMW Parts Catalog.
Use only lint-free cloths for cleaning the SCR system: WAYPALL cleaning cloths L20 - see the applicable BMW Parts Catalog.
NOTE:
TECHNICAL INFORMATION
After repair work, clean the working area thoroughly with water.
Clean special tools with water after every use.
After repair work, clean the working area thoroughly with water.
Clean special tools with water after every use.

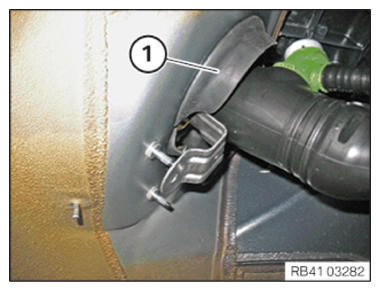

- Loosen the sealing lip (1) from the wheel arch.

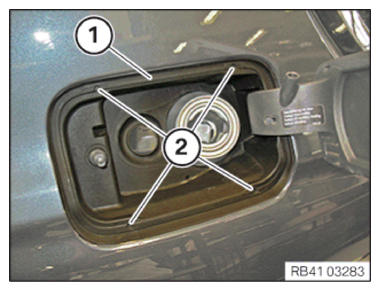

- Pierce the cover housing (1) in the highlighted areas (2) using a small screwdriver.
- Hold cover bowl under tension.
- Insert the screwdriver no more than 10 mm deep.
- Unlock the latch mechanisms (6) in a sequence from (1) to (4) using a screwdriver (5).

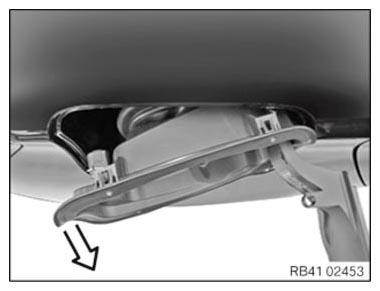

- Turn and remove the cover housing from the side panel.

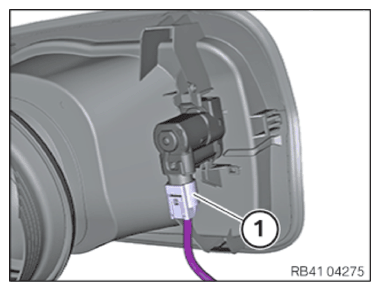

- Unlock plug connection (1) and disconnect.
- Close fuel filler flap.
- Remove the cover housing.
