Replacing controller drive for fuel filler flap

Remove servodrive for fuel filler flap

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

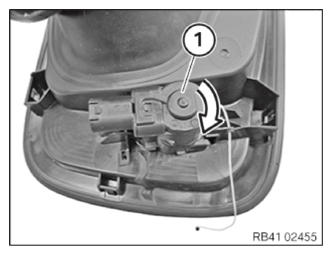

Unlock and remove controller drive for fuel filler flap (1) in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Install controller drive for fuel filler flap

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

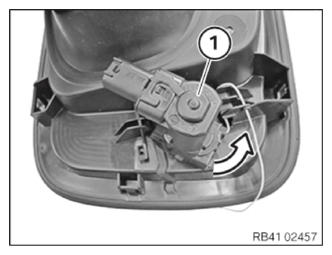

Correctly position the actuator for the fuel filler flap (1) and lock in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.
