Remove the knock sensors on the right
Prerequisite
- Ignition is switched off.
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: RAISE THE VEHICLE USING A VEHICLE LIFT .
NOTE:
TECHNICAL INFORMATION
When installing the knock sensors, the tightening torque must be observed.
Non-compliance with the tightening torque can lead to malfunction.
When installing the knock sensors, the tightening torque must be observed.
Non-compliance with the tightening torque can lead to malfunction.
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
- Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR AND THRUST FIELD RESPECTIVELY .
- Refer to REMOVING THE STIFFENING PLATE .
Prerequisite
Ignition is switched off.
The vehicle battery is disconnected.

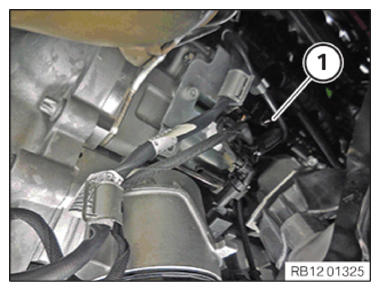

- Unlock connector (1) and remove from starter motor.

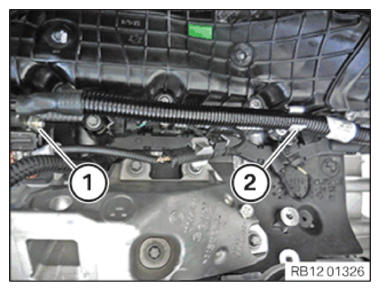

- Unfasten nut (1).
- Disconnect positive battery cable from starter motor.
- Disconnect the positive battery cable from the terminal (2) and set it aside.
- Detach the clamp (1) from the intake plenum.
- Unlock the connector (1) and disconnect it from the knock sensors.
- Loosen screws (3).
- Remove the knock sensors.
