When replacing the starter motor generator: Remounting the belt tensioner of the starter motor generator

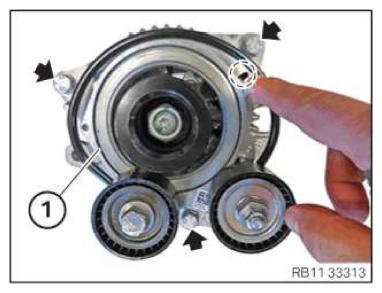

- Remove screws (arrows).
- Observe the installation position of the belt tensioner (1) for the starter motor generator in the marked area.
- Feed out the belt tensioner (1) of the starter motor generator and remove.
- Replace starter motor generator.
Parts: Starter motor generator
- Feed in and position the belt tensioner (1) of starter motor generator.
- Observe the installation position of the belt tensioner (1) for the starter motor generator in the marked area.
- Tighten screws (arrows).TIGHTENING TORQUES SPECIFICATION
Belt tensioner to starter motor generator M8X30 Tightening torque 28 Nm
