Removing the alternator
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE COVER ON LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP .
- Refer to REMOVING LEFT INTAKE FILTER HOUSING WITH LEFT FRONT-END STRUT .
- Refer to REMOVING RIGHT INTAKE FILTER HOUSING WITH RIGHT FRONT-END STRUT .
- Refer to REMOVING FRONT CROSS CONNECTION .
- Refer to REMOVING THE REAR TOP CROSS CONNECTION .
- Refer to REMOVING FAN COWL .
- Refer to PARTIALLY RELEASE THE COOLANT EXPANSION TANK FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to REMOVING DRIVE BELT .
- Refer to REMOVING THE FRONT RIGHT LOWER WHEEL ARCH COVER .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
- Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR AND THRUST FIELD RESPECTIVELY .
- Refer to DRAINING COOLANT .
- Refer to PARTIALLY RELEASING THE RIGHT CHARGE AIR LINE .
- Refer to RELEASING LEFT CHARGE AIR LINE PARTIALLY .
- Refer to PARTIALLY REMOVING THE CHARGE AIR COOLER .
- Refer to REMOVING THE CLEAN AIR PIPE OF CYLINDER BANK 1 .
- Refer to REMOVING THE CLEAN AIR PIPE OF CYLINDER BANK 2 .
- Refer to DISCONNECTING THE COOLANT LINES OF THE EXHAUST TURBOCHARGER .
- Remove cover (1).
- Loosen nut (2).
- Disconnect positive battery cable from alternator.
- Unlock plug connection (3) and disconnect.

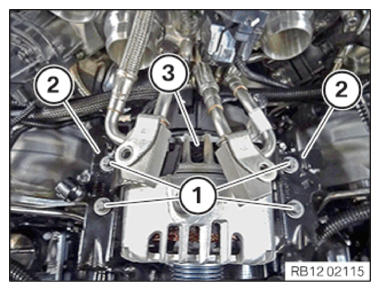

- Loosen screws (1).
- Thread out holder (2) and set aside.
- Guide out alternator (3) and remove.
