12 36 Control System, Hybrid/Electric Drive
>>
12 36 610 Replace electrical machine electronics (after vehicle diagnosis) (without programming/encoding) (530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022)
>>
Removing the positive battery cable
Removing the positive battery cable

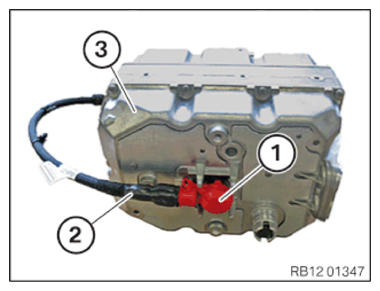

Remove the cover (1) and loosen the nut below.
Remove the positive battery cable (2) from the electrical machine electronics (3).
