Installing starter motor

• Insert and install the starter motor (2).
• Tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Starter mounting to engine
  M8x60	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

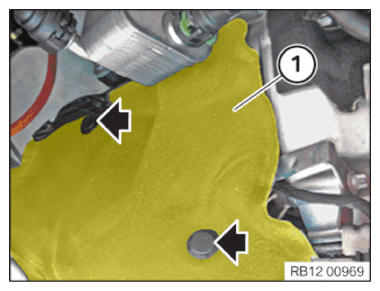

• Insert and install the sound insulation (1).
• Secure the clamps (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

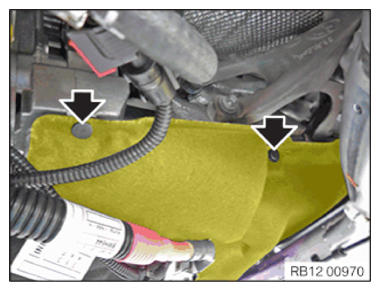

• Secure the clamps (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

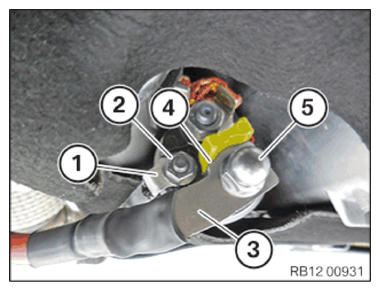

• Insert and install terminal 50 (1).
• Tighten nut (2).
  TIGHTENING TORQUES SPECIFICATION



  Terminal 50 to starter motor
  M6 hexagon nut	Tightening torque	7 Nm

• Insert and install the positive battery cable (3).
• Attach the positive battery cable (3) at the stop (4).
• Tighten nut (5).
  TIGHTENING TORQUES SPECIFICATION



  Battery positive lead to starter
  Cap nut M8	Tightening torque	13.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE THRUST FIELD .
• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
• Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
• Refer to CONNECTING NEGATIVE BATTERY CABLE .
• Refer to ONLY DURING STARTER MOTOR REPLACEMENT FOR VEHICLES WITH AUTOMATIC ENGINE START-STOP FUNCTION (MSA) .
