Install the positive battery cable from the alternator to the auxiliary terminal for jump starting

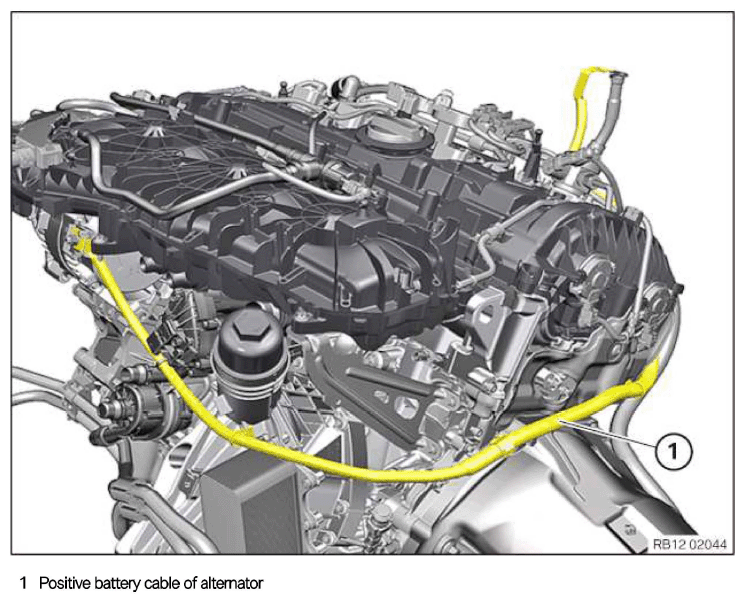

Positive battery cable of alternator

Courtesy of BMW OF NORTH AMERICA, INC.

Prerequisite

• Insert and install the positive battery cable (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and install the positive battery cable (2).
• Secure clamps (1).
• Make sure the locking mechanism (arrow) engages correctly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and install the positive battery cable (2).
• Tighten nut (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUES SPECIFICATION



  Positive battery cable to the alternator
  M8	Tightening torque	19 Nm

• Fasten the positive battery cable (1) with the holders (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Secure the positive battery cable (1) with the clamp (arrow).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Insert and install the positive battery cable (3).
• Secure clamps (2).
• Tighten nut (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUES SPECIFICATION



  Battery positive lead to battery positive terminal
  M8	Tightening torque	19 Nm

• Insert and install the cover (2) in the direction of the arrow.

  The locks (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Installing control unit bracket. Refer to 12 90 E-BOX .
• Refer to INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) (540i 2017-2020, 540i xDrive 2017-2020) , or INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) (540i 2021-2022, 540i xDrive 2021-2022) .
• Refer to INSTALLING THE DME CONTROL UNIT (540i 2017-2020, 540i xDrive 2017-2020) , or INSTALLING THE DME CONTROL UNIT (540i 2021-2022, 540i xDrive 2021-2022) .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING THE CENTER COWL UPPER PART .
• Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
• Refer to INSTALLING WINDSHIELD PANEL COVER .
• Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to CONNECTING NEGATIVE BATTERY CABLE .
• Refer to IF THE DME CONTROL UNIT IS REPLACED: PROGRAM/CODE DME CONTROL UNIT .
