Remove the positive battery cable from the starter to remote positive terminal

WARNING: Working on 12 V electrical system.
Risk of short circuits! Risk of fire!

Make sure that there is no charger connected to the jump start terminal in the engine compartment.
Detach battery ground lead from battery.
For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.

Preliminary work

Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
Refer to REMOVING THE ACOUSTIC COVER .
Refer to REMOVING THE CENTER UNDERBODY PROTECTION .
Refer to REMOVING REAR UNDERBODY PROTECTION .

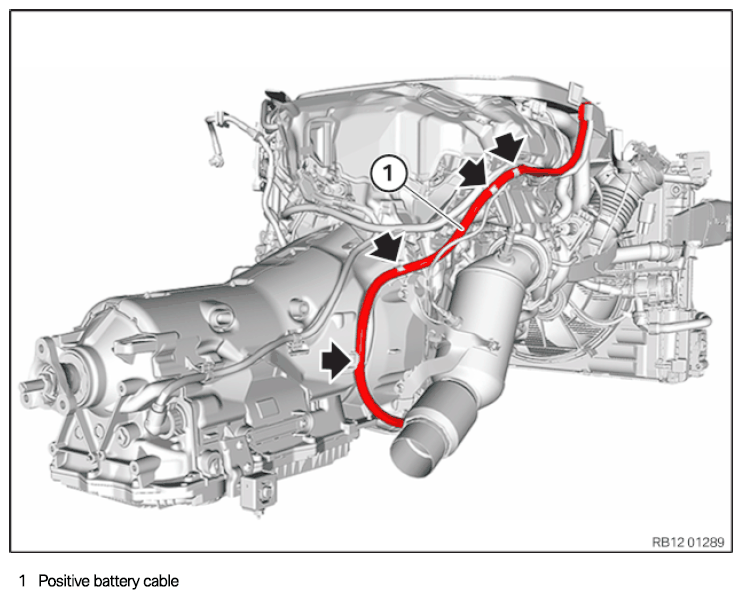

Positive battery cable from the starter motor to the remote positive terminal

G14192432

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Working on 12 V electrical system.
Risk of short circuits! Risk of fire!

Make sure that there is no charger connected to the jump start terminal in the engine compartment.
Detach battery ground lead from battery.
For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.

WARNING: Hot surfaces.
Risk of burning!

Perform all work only on components that have cooled down.

Unlock lock (1).
Guide and remove cover (2) in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen nut (1).
Loosen clamp (2).
Thread out positive battery cable (3) and set it aside.

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen nut (3).
Thread out positive battery cable (1) and set it aside.

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen nuts (1).
Feed out and remove the heat shield (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Release the clamps (arrows).
Remove positive battery cable (1) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
