Install the positive battery cable from the starter motor to the auxiliary terminal for jump starting

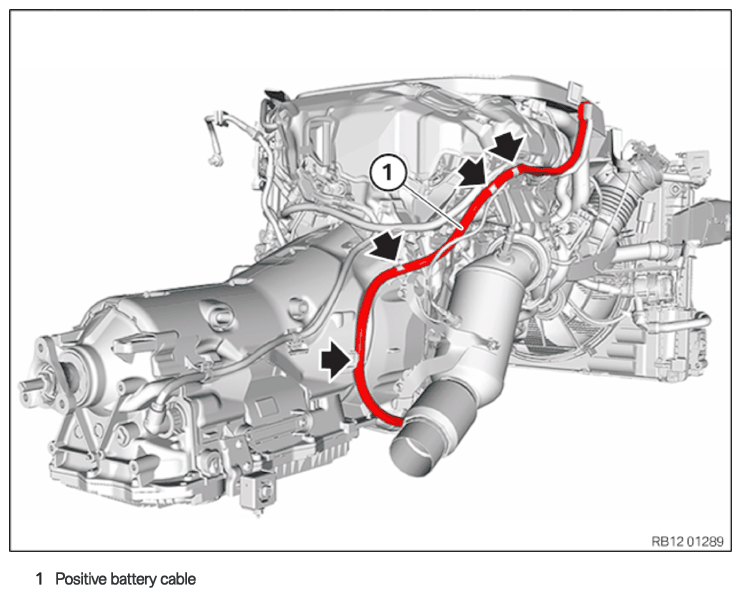

Positive battery cable from the starter motor to the remote positive terminal

Courtesy of BMW OF NORTH AMERICA, INC.

Prerequisite

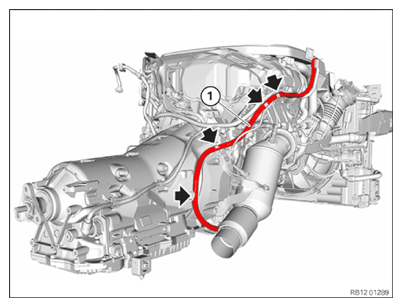

• Insert and install the positive battery cable (1).
• Secure the clamps (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

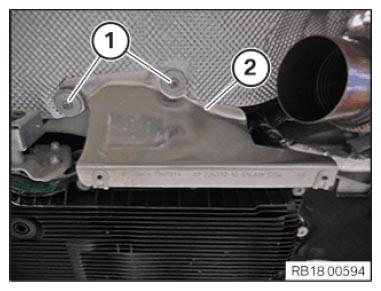

• Feed in and install the heat shield (2).
• Tighten nuts (1).
  TIGHTENING TORQUES SPECIFICATION



  Heat shield to body
  Nut	Tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

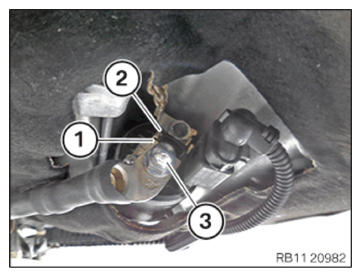

• Connect the positive battery cable (1) to the starter motor.
• Move the positive battery cable (1) on the anti-twist lock (2) to the stop.
• Tighten nut (3).
  TIGHTENING TORQUES SPECIFICATION



  Battery positive lead to starter
  M8	Tightening torque	13.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

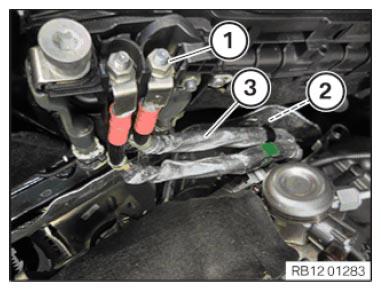

• Insert and install the positive battery cable (3).
• Secure clamps (2).
• Tighten nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

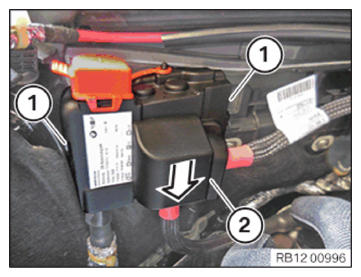

• Insert and install the cover (2) in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

The locks (1) must engage audibly.

Follow-up work

• Refer to INSTALLING REAR UNDERBODY PROTECTION .
• Refer to INSTALLING THE THRUST FIELD .
• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
• Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to CONNECTING NEGATIVE BATTERY CABLE .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
