Installing the positive battery cable from the remote positive terminal to the starter

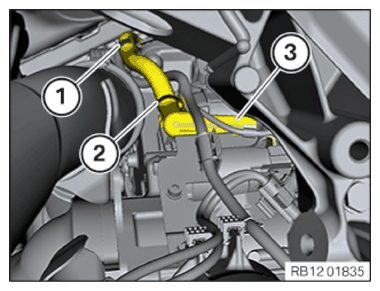

• Insert and position the positive battery cable (3).
• Replace the cable ties (2).

  Parts:  Cable tie

• Tighten the cable tie.
• Cut off the protruding end of the cable ties.
• Engage the positive battery cable (3) on the holder (1).

Courtesy of BMW OF NORTH AMERICA, INC.

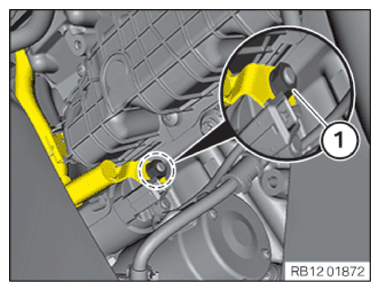

• Tighten nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

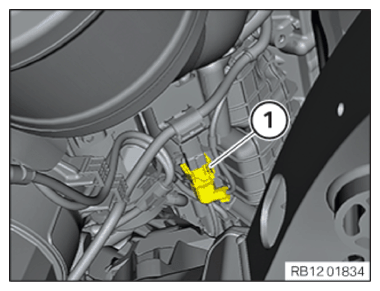

• Connect the plug connection (1) on the solenoid switch and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

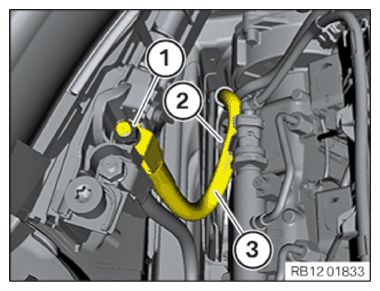

• Feed in the positive battery cable (3) on the stud bolt of the remote positive terminal.
• Engage the positive battery cable (3) on the holder (2).
• Tighten nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in the cover (1) in a downwards direction.
• Check the detents (2) are seated correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING FRONT STIFFENING PLATE .
• Refer to INSTALLING REAR UNDERBODY PROTECTION .
• Refer to INSTALLING CONTROL UNIT HOLDER FOR CYLINDERS 1 TO 4 .
• Refer to INSTALLING THE COVER OF THE RIGHT DME CONTROL UNIT .
• Refer to CONNECTING NEGATIVE BATTERY CABLE .
