Install the wiring harness section for the ignition and injectors
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
- Route all cables without abrasions, do not trap and crush.

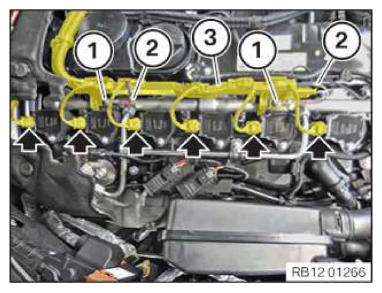

- Guide in and Install the wiring harness section for the ignition and injectors (4).
- Secure clamps (1).
- Connect and lock the holder (2).
- Connect and lock the holder (3).
The holder (3) and clamps (1) must be heard to engage.

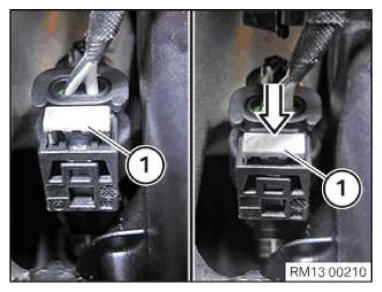

- Connect the connector (1) to the injectors.
The connector must engage audibly.
- Engage the lock (1) the direction of the arrow.
- Thread in cable duct (3) and install.
- Thread in ground cable (2) and install.
- Tighten nuts (1).TIGHTENING TORQUES SPECIFICATION
Ground cable to rail M6 Tightening torque 5 Nm - Connect and lock the connectors (arrows).
The connectors must engage audibly.
Mounting the service opening in the sound insulation on top of the engine
- Turn sound insulation (2) beyond the pivot point (1) into the installation position and guide in to the marked areas (arrows).
- Connect and lock all connectors (1) in the direction of the arrow.
All connectors must audibly engage.
- Slide the cover (1) in the direction of the arrow into the guide (2) and install it.
- Lock clamp (3).
The clamp must engage audibly.
Follow-up work
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to CONNECTING NEGATIVE BATTERY CABLE .
