Remove the wiring harness section for the Valvetronic servomotor

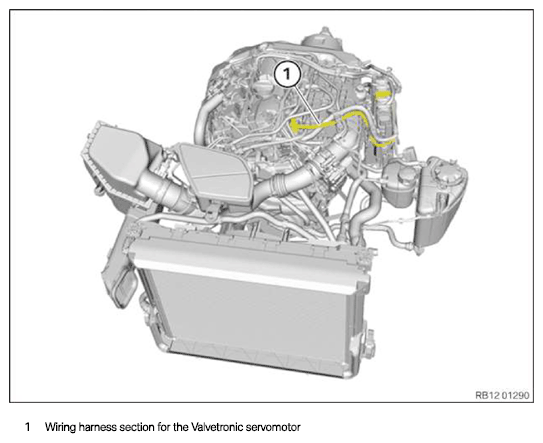

Wiring harness section for the Valvetronic servomotor

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: DANGER
High-voltage system.
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!

All work on the high-voltage system may only be carried out by specially trained and technically experienced personnel.
For additional information see:
SAFETY INSTRUCTIONS ON HANDLING HYBRID CARS .
For additional information see:
NOTES ON REPAIR OF HIGH-VOLTAGE BATTERY UNIT .

Preliminary work

Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
Refer to REMOVING THE ACOUSTIC COVER .

NOTE: RISK OF DAMAGE
Damage to wires when disconnecting connectors and plug connections.
Sheared wires can cause a short circuit.

Do not pull on wires when disconnecting connectors and plug connections.

Unlock and loosen clamp (1).
Guide and remove cover (2) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and loosen all plug connections (1) in the direction of the arrow.
Guide out wiring harness section for the Valvetronic servomotor (2) and set aside.

Courtesy of BMW OF NORTH AMERICA, INC.
Release the wiring harness mountings (arrow).
Remove the wiring harness section (1) and put to one side.

Courtesy of BMW OF NORTH AMERICA, INC.
Slide the tank vent line (1) out and set it aside.
Unlock plug connection (2) and disconnect.
Remove the wiring harness section (3).
