Install the wiring harness section for the Valvetronic servomotor
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
- Route all cables without abrasions, do not trap and crush.

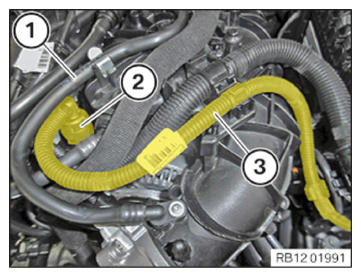

- Guide in the wiring harness section (3) and install.
- Connect connectors (2) and lock.
The connector (2) must engage audibly.
- Insert and install the tank vent line (1).

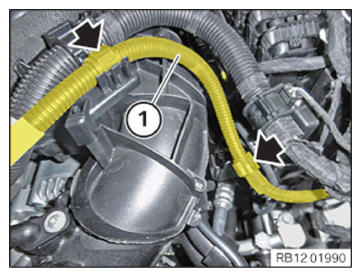

- Guide in the wiring harness section (1) and install.
- Fasten the wiring harness mounting (arrows).

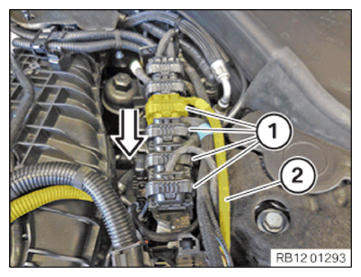

- Insert and install the wiring harness section for the Valvetronic servomotor (2).
- Connect and lock all connectors (1) in the direction of the arrow.
All connectors (1) must engage audibly.
- Slide the cover (1) in the direction of the arrow into the guide (2) and install it.
- Lock clamp (3).
The clamp (3) must engage audibly.
Follow-up work
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to CONNECTING NEGATIVE BATTERY CABLE .
