Install the wiring harness for the Valvetronic servomotor

Wiring harness for the Valvetronic servomotor

Courtesy of BMW OF NORTH AMERICA, INC.

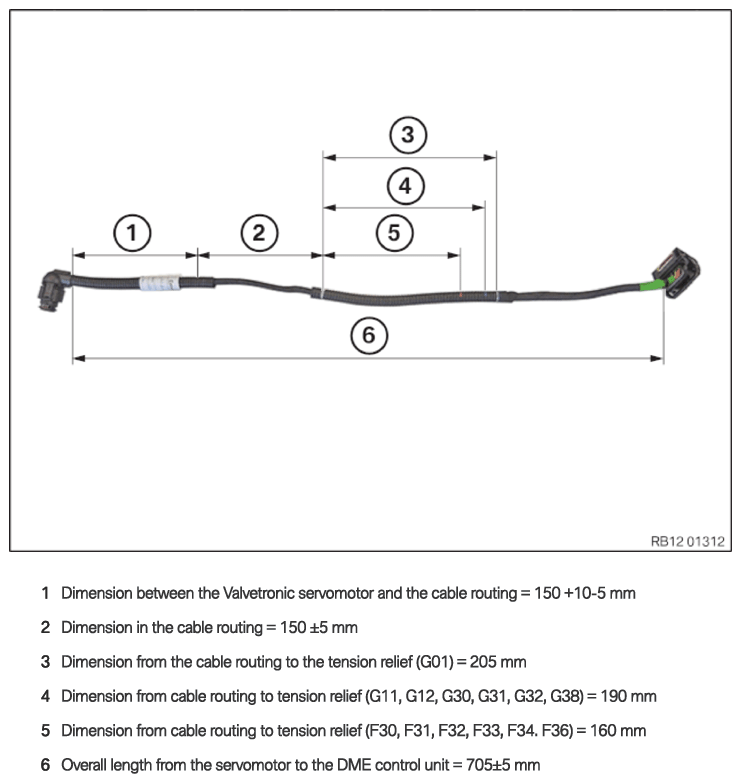

• Position the wiring harness for the Valvetronic servomotor as shown in the overview and install.

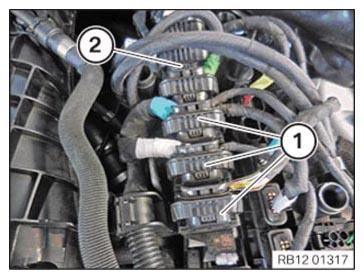

• Connect and lock the connectors (2) to the DME control unit.
• Connect and lock all connectors (1) to the DME control unit from back to front.

  Courtesy of BMW OF NORTH AMERICA, INC.

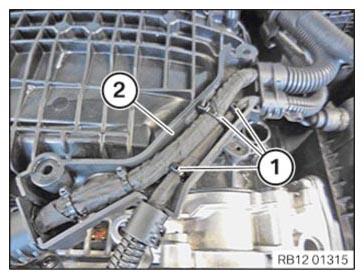

• Fasten the wiring harness for the Valvetronic servomotor on the cable duct (2) with the cable ties (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

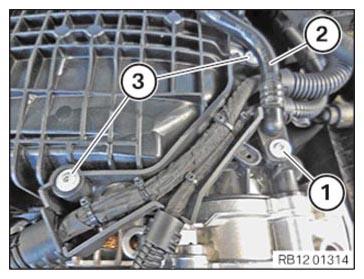

• Mount the cable duct on the intake plenum.
• Tighten down screws (3).
  TIGHTENING TORQUES SPECIFICATION



  Cable duct to intake plenum
  	Tightening torque	4 Nm

• Mount the tank vent line (2) on the intake plenum.
• Tighten down screw (1).
  TIGHTENING TORQUES SPECIFICATION



  Tank vent line to intake plenum
  Oval-head screw	Tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

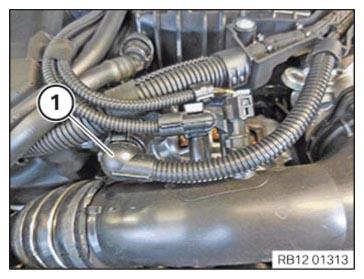

• Unlock the connector (1) and detach it off the Valvetronic servomotor.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING COVER FOR THE DME CONTROL UNIT .
• Refer to INSTALLING ACOUSTIC COVER .
