Installing the left wiring harness section for sensor system 2

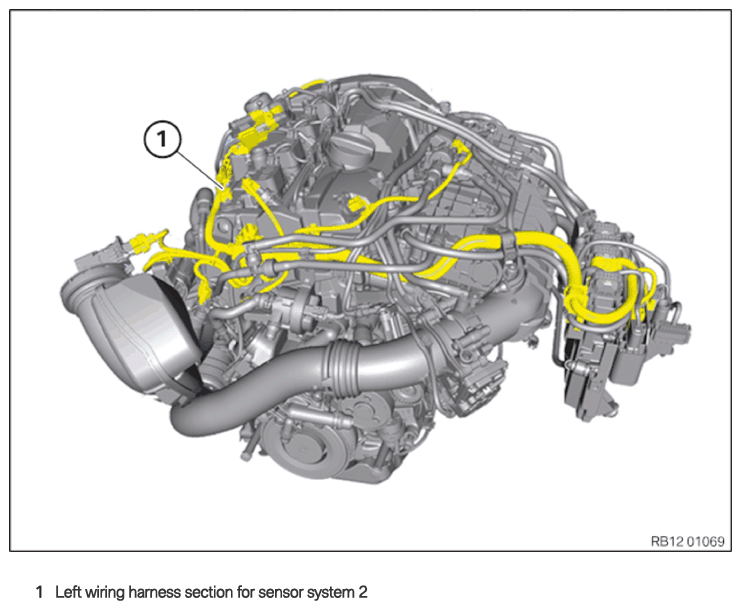

Left wiring harness section for sensor system 2

Courtesy of BMW OF NORTH AMERICA, INC.

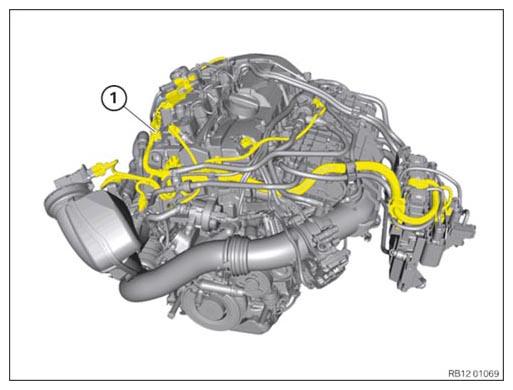

• Guide in the wiring harness section (1) and install.
• Connect and lock the connector of the temperature sensor at the cylinder head.
• Connect and lock the connector for the tank vent valve.
• Connect and lock the connector for the heat management module.
• Connect and lock the connector of the camshaft position sensor of the intake camshaft.

  The connectors must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Thread in cable duct (2) and install.

  The locks (arrows) must engage audibly.

• Secure the clamp (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in and install the wiring harness section for sensor system 2 (1).
• Connect and lock the cable clip (2).
• Connect and lock the cable clip (3).
• Connect and lock all connectors (6) in the direction of the arrow.
• Connect and lock the connector (5).
• Connect and lock the connector (4).

  The connectors and the cable clips must audibly engage.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Slide the cover (1) in the direction of the arrow into the guide (2) and install it.
• Lock clamp (3).

  The clamp (3) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING CLEAN AIR PIPE, TOP .
• Refer to INSTALLING INTAKE SILENCER HOUSING .
• Refer to INSTALLING ACOUSTIC COVER AT REAR .
• Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to CONNECTING NEGATIVE BATTERY CABLE .
