Install oil pressure sensor

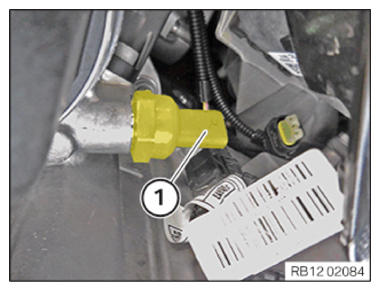

• Insert and install oil pressure sensor (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

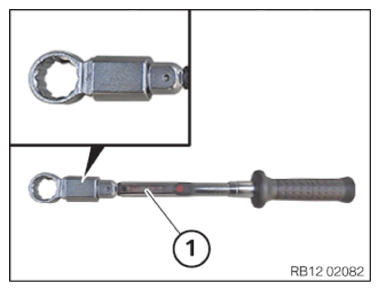

• Prepare the tool (1) as shown.

  Courtesy of BMW OF NORTH AMERICA, INC.

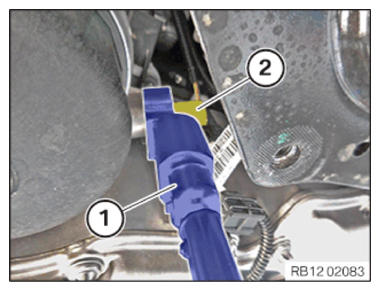

• Tighten oil pressure sensor (2) with the prepared tool (1).

Courtesy of BMW OF NORTH AMERICA, INC.

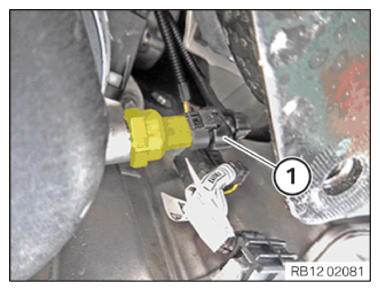

• Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE THRUST FIELD .
• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
• Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
