Install control unit bracket
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
- Route all cables without abrasions, do not trap and crush.

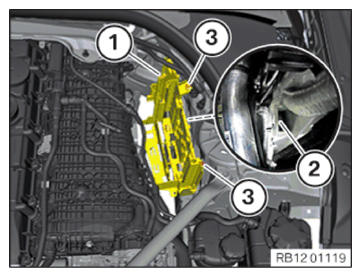

- Insert the control unit bracket (3).

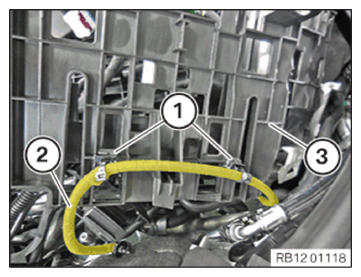

- Guide in the wiring harness (2) and fasten with the clamps (1).
- Feed the control unit bracket (1) into the guide (2) and install.
- Tighten down screws (3).TIGHTENING TORQUES SPECIFICATION
Control unit bracket at the shock tower Hexagon screw Tightening torque 8 Nm - (1) Secure wiring harness.

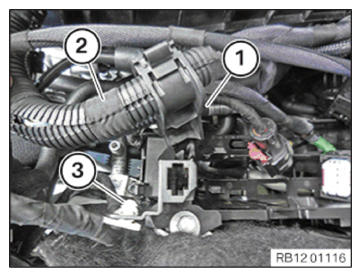

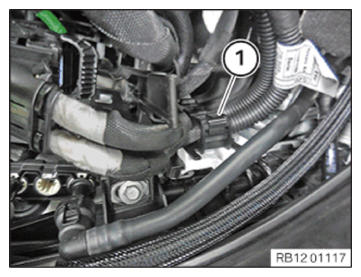

- Insert and install the wiring harness (2).
- Lock the lock (1).
The lock (1) must audibly engage.
- Secure clamp (3).
Follow-up work
- Refer to INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
- Refer to INSTALLING THE DME CONTROL UNIT .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to CONNECTING NEGATIVE BATTERY CABLE .
