Circular connector, 13-pin, system D2.5 (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)

Special tools required:

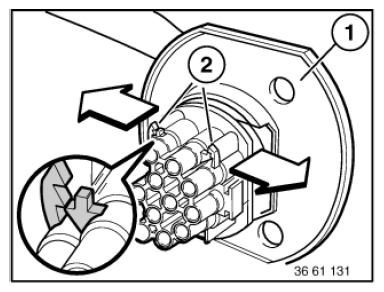

Pull off rubber grommet (1).

Carefully pull out lock (2) in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

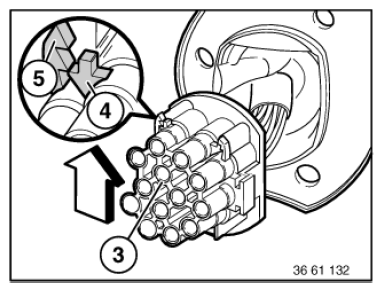

Move lower section of connector (3) in direction of arrow until retaining lugs (4) snap into release groove (5).

Courtesy of BMW OF NORTH AMERICA, INC.

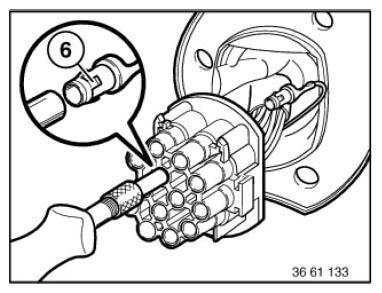

With special tool 61 0 303 , press down retaining lugs (6) of corresponding contact and pull out cable.

Courtesy of BMW OF NORTH AMERICA, INC.
