Inline plugs, 2-pin, System MPQ 2.8 (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)

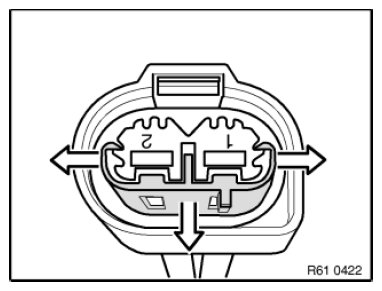

Press catch on outside in direction of arrow and remove towards top.

Courtesy of BMW OF NORTH AMERICA, INC.

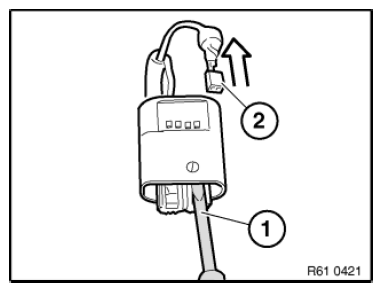

Press down retaining hook (1) with screwdriver and pull out cable and contact (2) towards rear.

Courtesy of BMW OF NORTH AMERICA, INC.
