In-line plugs, 2-pin, System MDK 3 plus 2.8 (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)

Special tools required:

• 61 0 316

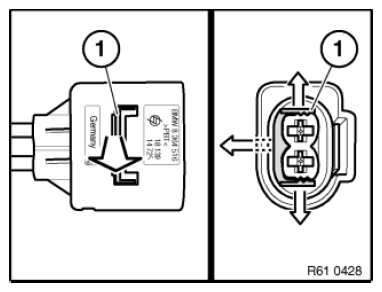

Unlock lock (1) on outside at retaining hook and slide out lock (1) to side.

Courtesy of BMW OF NORTH AMERICA, INC.

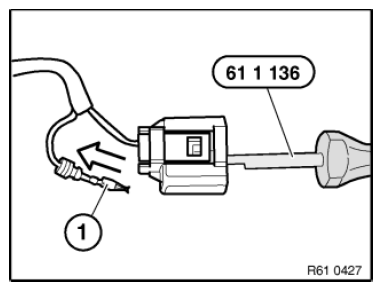

With special tool 61 0 316  (61 1 136), unlock contact and pull out cable with contact (1) towards rear.

Courtesy of BMW OF NORTH AMERICA, INC.
