Removing the separating element

Preliminary works

• Deactivate the 48 v ELECTRICAL SYSTEM .
• Disconnect all battery EARTH LEADS .

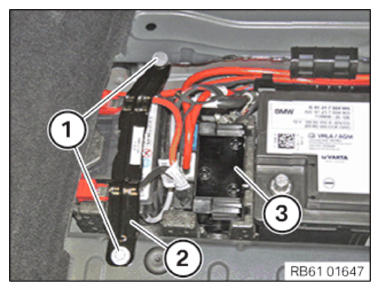

• Loosen screws (1).
• Remove the retaining brackets (2).
• Remove separating element (3) in upward direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

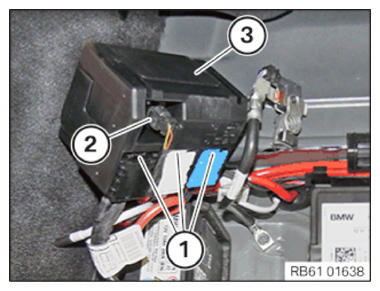

• Unlock and disconnect connector (1) at separating element (3).
• Unlock and disconnect connector (2) at separating element (3).

  Courtesy of BMW OF NORTH AMERICA, INC.
