Installing the power distribution box for the positive battery cable at the rear

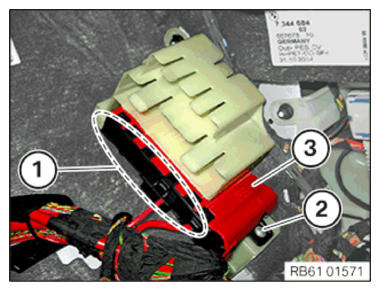

• Insert the power distribution box for the positive battery cable (3).
• Tighten down screw (2).
  TIGHTENING TORQUES SPECIFICATION



  Power distribution box, positive battery terminal
  Screw TS6x20	Tightening torque	1.2 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

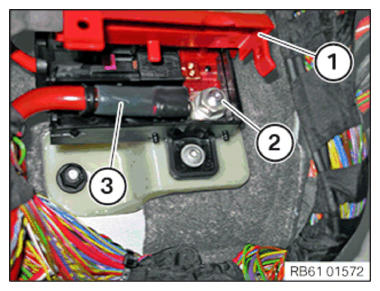

• Connect all connectors (1).
• Tighten the positive battery cable (3) using the nut (2).
  TIGHTENING TORQUES SPECIFICATION



  Positive battery cable
  Positive pole screw	Tightening torque	15 Nm

• Close the cover (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Install the right luggage compartment wheel arch TRIM PANEL .
• Install rear seat and rear SEAT BACKREST (not in case of SA465 through-loading system)
• Install right backrest SIDE SECTION .
• Install loading EDGE TRIM .
• Reconnect all battery EARTH LEADS
• Activate the 48 v ELECTRICAL SYSTEM .
